Product details

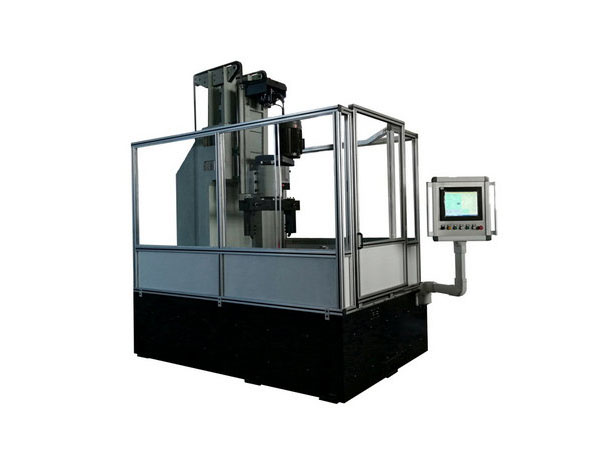

1. Brake drum turning automatic balancing machine

Automatic balance of brake drum eccentric turning is a product of our company, which realizes a station measurement and eccentric turning to remove weight, filling the technical gap. Without universal reinforcing bar drilling and small section milling to remove weight, the product to a large extent to ensure the brake drum in the balance of the rear drum mouth strength; Compared with milling to reduce the weight greatly workshop noise; Compared with the milling method of automatic balancing machine equipment efficiency is greatly improved.

2. Measurement system

★ industrial control computer, industrial touch screen, Windows operating platform

★ with the company's independent development of automatic eccentric turning balance measurement system

★ one-key automatic operation and equipment calibration, make equipment operation more concise

3. Mechanical parts and controls

★ integrated equipment, and more than 4t of equipment weight makes the equipment rigid and stable operation.

★ equipment with full protection device, special chip structure, equipment will not pile up a lot of iron chips

★ power head counterweight device makes the power head accurate operation.

★PLC control workflow, servo, pneumatic action implementation

Note: please contact us for specific requirements of the equipment, and we will give you a good plan

Manufacturer standard configuration parameters

Equipment model abm-500

Maximum mass of workpiece (kg) 80

Workpiece large diameter (mm) ?500

Balance correction method eccentric turning

Minimum residual unbalance GMM /kg ≤2

Unbalance reduction rate ≥90%

Balance speed range (RPM) 150-500

Balanced spindle servo motor 7.5kw

Turning spindle motor power 5.5kw

Turning speed (RPM) ≤250

Eccentric turning feed servo 2Kw

Turning tool vertical travel mm > 300

Compressed air (KPa) 600

★ equipment details please contact us for information
